4 to 1 Voltage Balum
Palomar Core

This balun / antenna setup is explained in detail at my portable / mobile antenna page. The "Putty Knife" balun setup is to keep everything as light as possible for the fiberglass push up poles.

Click on images below for a larger graph.

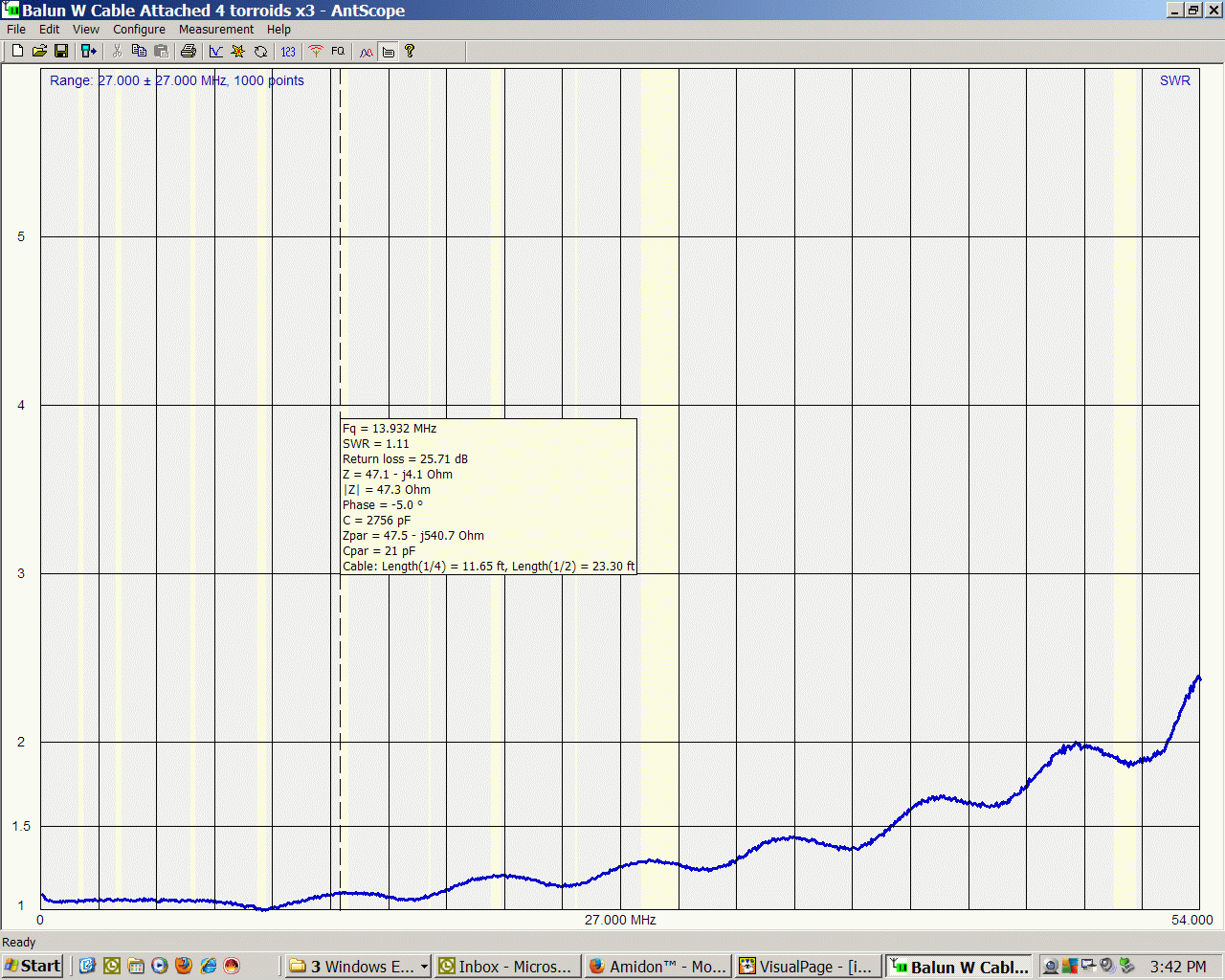

Putty Knife balun terminated with a 200 Ohm resistor where the OCF goes.

Putty Knife OCF, 38% from one end fed, 80Meter length, 30 foot elevation.
